Product Description

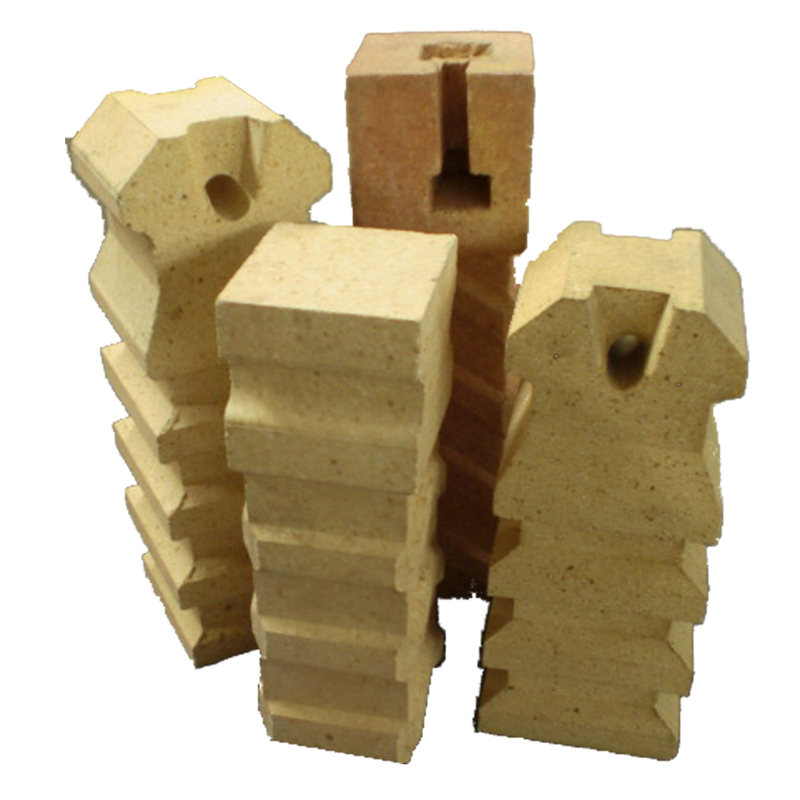

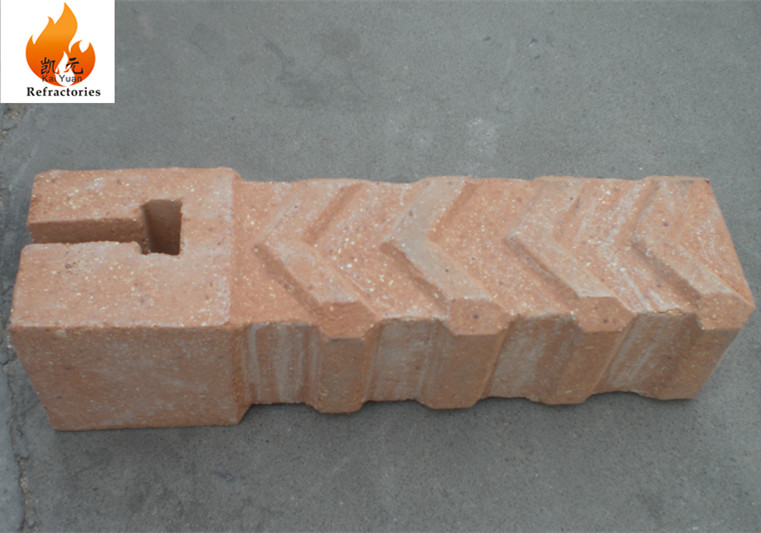

High alumina anchor brick
The product features: hanger ( anchor ) brick for heating furnace is made from white fused alumina ,special grade bauxite, andalusite,mullite, flint clay as main raw material, added with little amount of soft clay, shaped by high pressure and sintered at high temperature. The main mineral constituent includes mullite and corundum, with excellent thermal stability at high temperature.
Items | Corundum Andalusite | High alumina Andalusite | High alumina | High alumina | High alumina | Fireclay | |
JRL-90 | JRL-80A | JRL-80 | JRL-70 | JRL-60 | JRL-50 | ||
Al2O3 % ≥ | 90 | 80 | 80 | 70 | 60 | 50 | |
Fe2O3% ≤ | 0.5 | 1.0 | 1.5 | 1.5 | 1.8 | 1.8 | |
A.P % ≤ | 15-19 | 17-21 | 19-23 | 19-24 | 20-25 | 20-26 | |
B.D g/cm³ ≥ | 2.9 | 2.7 | 2.6 | 2.5 | 2.35 | 2.3 | |
C.C.S Mpa ≥ | 60 | 60 | 60 | 55 | 50 | 40 | |
RUL ℃ | 1600℃ 0.8 | 1560℃ 0.8 | 1540℃ 0.8 | 1500℃ 0.8 | 1460℃ 0.8 | 1450℃ 0.8 | |
P.L.C % | 1550℃×2h | 0.1-0.2 | 0.1-0.2 | 0.1-0.2 | -- | -- | -- |
1450℃×2h | -- | -- | -- | 0.1-0.2 | -- | 0.1-0.4 | |
1100℃ Thermal shock resistance water Cycle |
25 |
20 |
15 |
15 |
20 |
15 | |

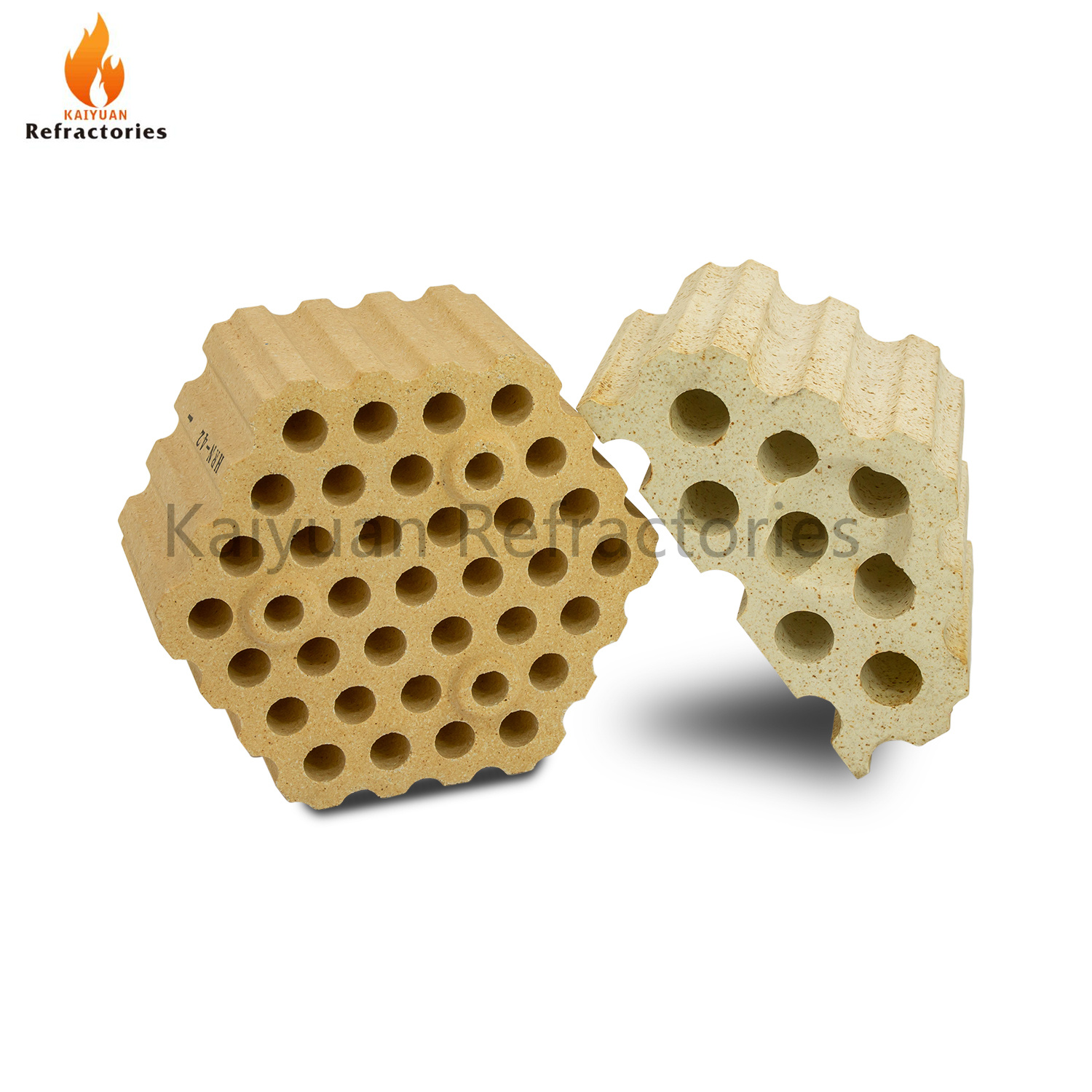

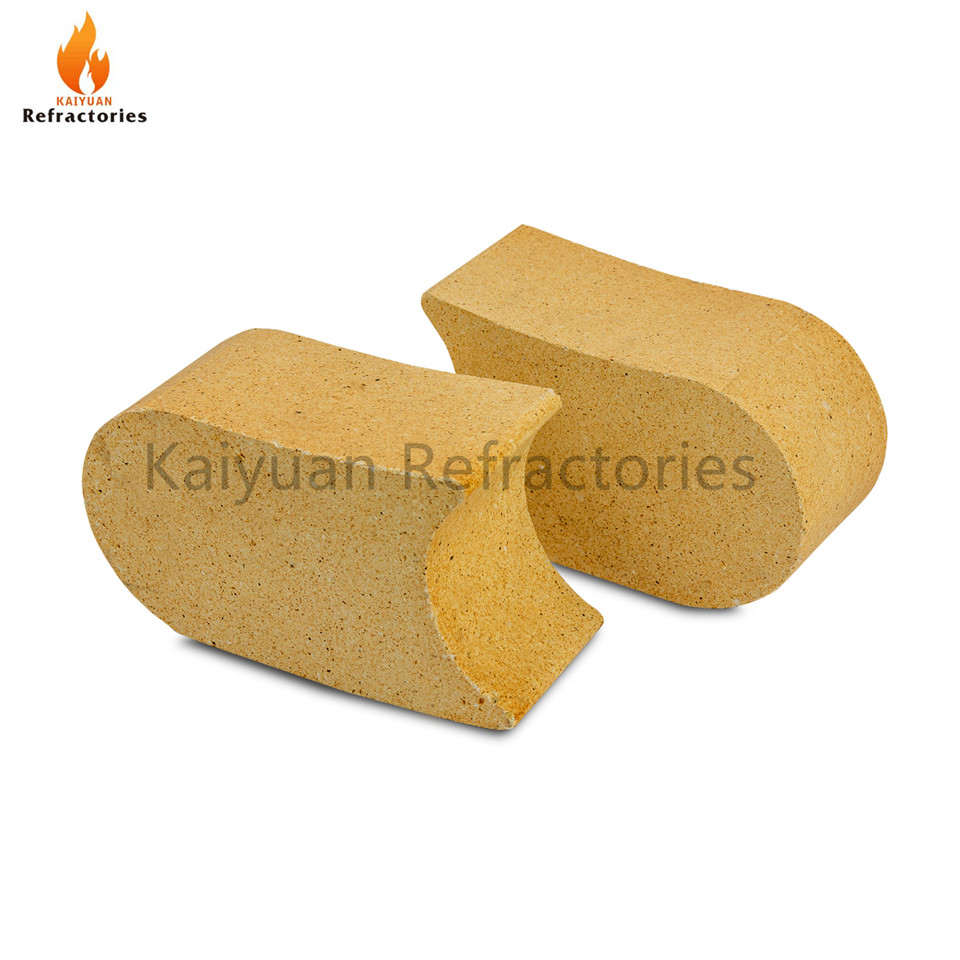

High alumina refractory brick is formed and calcined from bauxite or other raw materials with high alumina content. High thermal stability, refractoriness above 1770℃. It has good slag resistance and is used for the lining of steel-making electric furnaces, glass melting furnaces, cement rotary furnaces, etc.
Features:
High alumina brick has the advantages of small high temperature creep, strong corrosion resistance, good thermal shock stability, etc. It is suitable for large and medium-sized hot blast stoves.
Application:
High alumina bricks are mainly used for masonry blast furnace, hot blast stove, electric furnace roof, blast furnace, rotary kiln lining. In addition, high alumina bricks are also widely used as open hearth regenerative checker bricks, plugs for pouring systems, nozzle bricks, etc.
